1. Introduction
A herringbone gear is a special type of cylindrical gear whose teeth are arranged in a "herringbone" or "V" pattern. It can be conceptualized as two helical gears with equal but opposite helix angles placed side by side. This symmetrical structure causes the axial thrust forces generated during operation to internally cancel each other out. This eliminates the need for expensive thrust bearings that are required for single helical gears to handle axial loads. A herringbone gear shaft is a critical component where the herringbone gear is integrated with the shaft as a single monolithic part.

2. Advantages

• Self-Cancelling Axial Thrust: The core advantage. The axial forces generated by the left-hand and right-hand helices are equal in magnitude but opposite in direction, resulting in net zero axial force. This greatly simplifies the bearing support structure and reduces cost.

• High Load Capacity: Inherits the advantages of helical gears: high contact ratio (more teeth in contact simultaneously), smooth power transmission, low noise, and the ability to transmit higher torque and power.

• Smooth Operation: The engagement process is a continuous, gradual contact, resulting in less impact, lower vibration, and quieter operation compared to spur gears. This makes them ideal for high-speed, heavy-duty applications.

• High Reliability: The monolithic structure (or one with a central groove) of a herringbone gear shaft offers excellent rigidity and avoids potential issues associated with axial thrust.

3. Key Technical Parameters
Most parameters for herringbone gears are similar to helical gears, but with symmetry:

• Module: The fundamental parameter determining tooth size (normal module is the standard value).

• Helix Angle (β): The helix angles for both sides are equal in value but opposite in hand (often denoted as β/β, e.g., 30°/30°).

• Hand of Helix: Combines both left-hand and right-hand helices.

• Axial Gap/Central Groove: For designs with a manufacturing gap, this dimension is an important parameter.

• Accuracy Grade: Rated according to ISO or AGMA standards, typically requiring high precision.

Specific Parameters for Herringbone Gear Shaft:

• Construction Type: Solid (no central groove) or with a central groove for manufacturing.

• Material & Heat Treatment: Often made from high-grade alloy steels (e.g., 42CrMo, 20CrNi2MoA) and subjected to deep heat treatments like carburizing and hardening to meet extreme load demands.

4. Applications
Herringbone gears are primarily used in critical applications involving extreme heavy loads, high speeds, and demands for smooth operation:

• Marine Propulsion Systems: Gearboxes (reduction gears) for large ships and vessels (their most classic application).

• Heavy Machinery: Steel rolling mills, mining crushers, large extruders.

• Power Generation Sets: Reduction drives for gas turbines and steam turbines.

• Pumps and Compressors: Speed increasing gearboxes for large high-pressure centrifugal compressors and pumps.

gear shaft self cancelling

self cancelling herringbone gear

axial thrust gear shaft

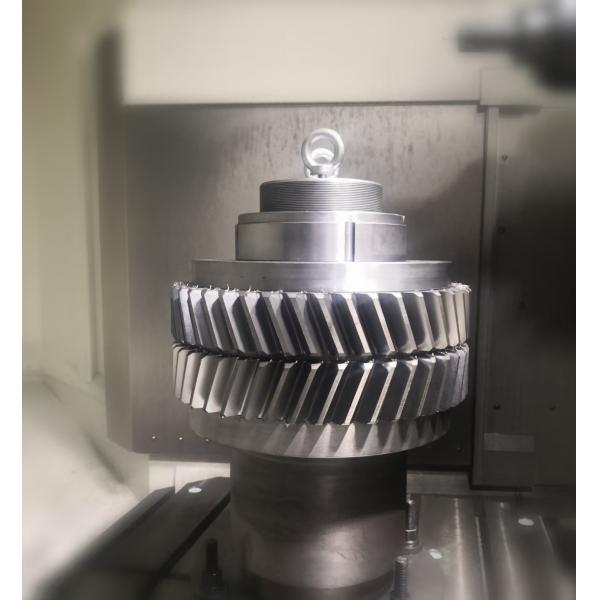

Herringbone Gear & Herringbone Gear Shaft Self Cancelling Axial Thrust Images
